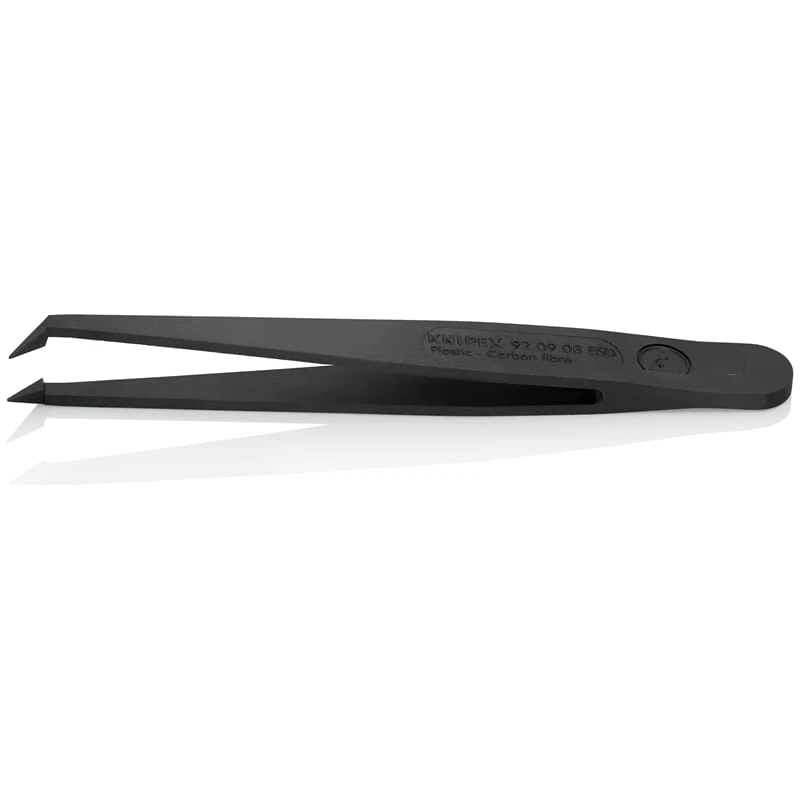

Knipex 92 09 03 ESD Kunststoffpinzette schwarz



Features:

• Available in reusable ESD or disposable versions
• ESD tweezers are made of 30% carbon fibre reinforced plastic, are electrically and thermally highly conductive and are characterised by high resistance to abrasion and scratching
• ESD versions only: with a surface resistance between 10^2 and 10^3 ohms to compensate in a controlled manner the differences in potential between the operator and the electronic components
• ESD plastic tweezers are temperature-stable up to 130° C, short-term use is possible at up to 190° C
• The carbon fibre reinforced plastic of the ESD variants is extremely flexible, fatigue-resistant, vibration-reducing and water-repellent, with good chemical resistance to most oils, greases, fuels and nonpolar solvents
• ESD plastic tweezers are ideal for maximum surface protection when handling sensitive electronic components, micro-mechanical parts, as well as glass and ceramic components
• ESD plastic tweezers: also available as a set (92 00 05 ESD)
• Carbon fibre reinforced plastic



Technical details:

• Article No. 92 09 03 ESD
• EAN: 4003773086994
• Material: carbon fibre reinforced plastic
• Gripping surfaces: smooth gripping surfaces
• Weight: 4.5 g
• Dimensions: 110 x 11.5 x 15 mm
• Standard: DIN EN 61340 -5-1
• Reach-konform: no
• RohS-konform: no
• Surface: matt finish
• Tips width (A): 0.5 mm
• Tips width (B): 0.4 mm
• Tips width (C): 5.8 mm
• Tips width (D): 8.5 mm
• Corrosion-resistant: yes
• Acid resistance: very good
• ESD-tested: yes
• VDE tested: no
• Sectors: electronics
• Magnetic: non-magnetisable (100%)
• Behaviour: electrically dissipative
